Battery Vibration Testing UN38.3 for EV Battery Testing
Technical Specifications
| Attribute |
Value |
| Frequency |
2000Hz |
| Sine force |
20kN /2000kg/4409lbf |
| Random force |
20kN /2000kg/4409lbf |
| Shock force |
98kN /9800kg/9918lbf |
| Channel |
2/4/8/16 |
| Maximum acceleration |
100g |
| Maximum displacement |
100mm (4")/76mm (3")/51mm (2") |
| Maximum load |
300KG |
| Moving parts mass |
20KG |
| Armature diameter |
335mm |
EV Battery Vibration Testing Overview
Lithium-ion batteries are the most common battery type used for electric vehicles. During their lifespan, these batteries undergo various vibrations and temperature changes. Several test standards have been developed to simulate long-term environmental effects on these batteries across different size levels (cell, module, pack).
Vibration Test Types
- Sine Vibration: Periodic vibration following sine/cosine functions, including fixed-frequency and sweep-frequency variations
- Random Vibration: Irregular waveform vibration that better simulates real-world conditions like road travel
- Mixed-mode Vibration: Superposition of sine and random vibrations for complex simulation scenarios
Key Battery Vibration Standards
SAE J2380: Simulates 100,000 miles of driving with random vibration profiles across three axes
SAE J2464: Evaluates abuse tolerance with thermal shock cycling and shock vibration tests
IEC 62660-2: Specifies reliability testing including random vibration and mechanical shock tests
UN 38.3: Simulates transportation conditions with swept sine vibration and shock tests

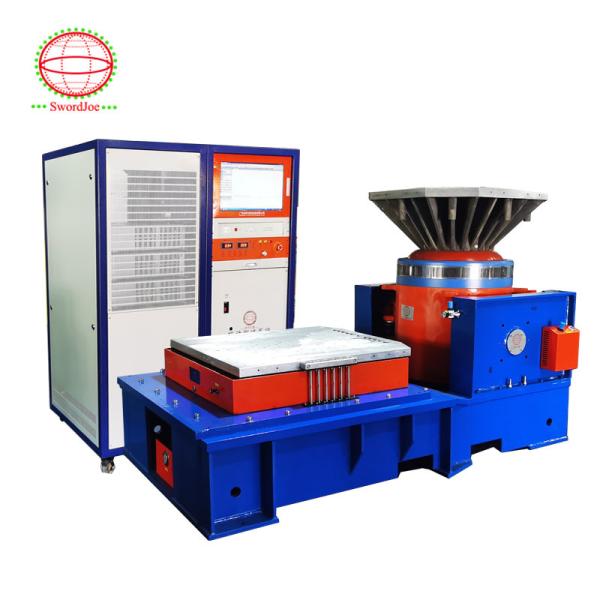

Shaker Specifications
| Model |
JQA-202-335 / JQA-203-335 |
| Frequency Range (Hz) |
5~3000 |
| Rated sinusoidal force (KN) |
20 |
| Shock force (KN) |
40/60✱ |
| Max. acceleration (m/s²) |
980 |
| Max. speed (m/s) |
2 |
| Max. displacement (mmp-p) |
51/76 |
| Max. load (kg) |
300 |
About Guangdong Jianqiao Testing Equipment Co.,Ltd
A professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With over 20 years of experience, we provide high-quality products and solutions that meet ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and other international standards.
Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other sectors, serving scientific research units, quality inspection institutions and academic fields.
